Nose cone pictures

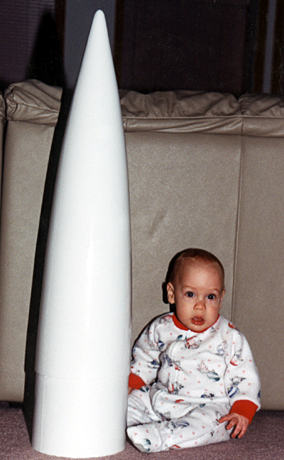

My son Jackson next to my PML nose cone. Nose Cone

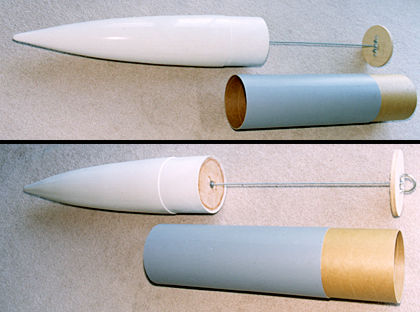

Nose Cone Nose cone connection to bulkhead.
The completed (but not painted) nose cone section. Nose Cone

Fin/motor mount pictures

Iris Fins Applying epoxy to the carbon fiber.

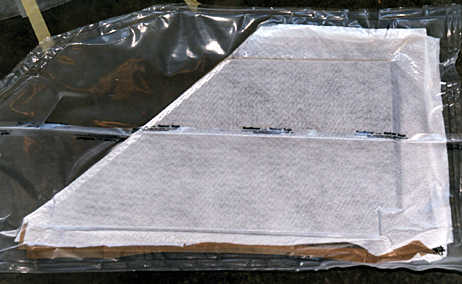

Vacuum bagging with the Food Saver. Iris Fins

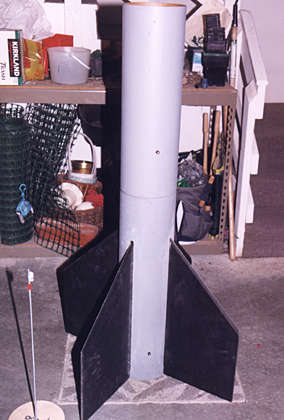

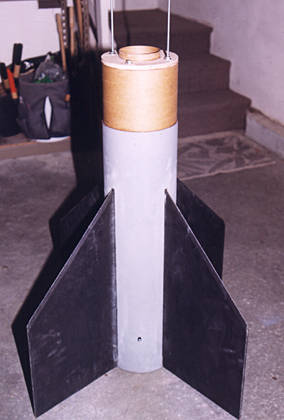

Fin Section Assembling the fin/motor section.
Fin Section Fin Section

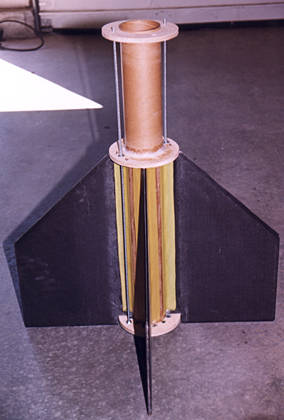

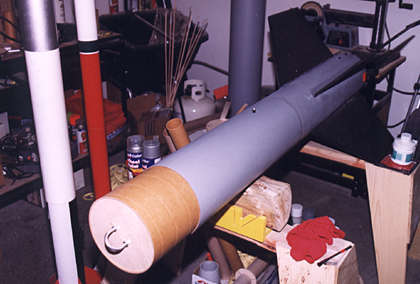

Fin Section The final fin/motor section assembly (if you can find it among the junk).

Body tube picture

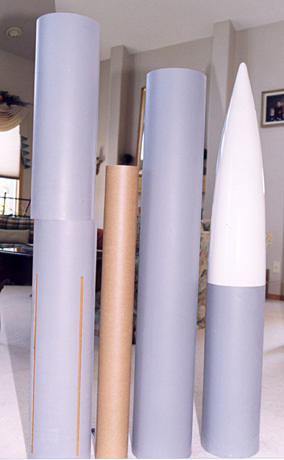

The body tubes, motor mount tube, and nose cone. Body Tubes

Altimeter bays pictures

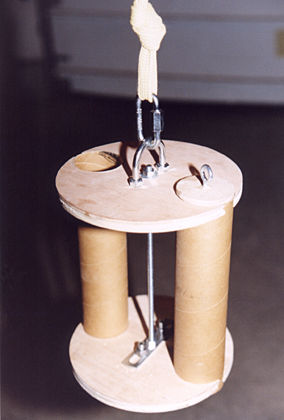

Altimeter Bays The altimeter bays before installing in a coupler.

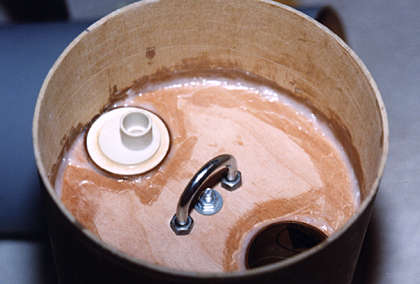

The altimeter bays forward view with one bay installed. Altimeter Bays

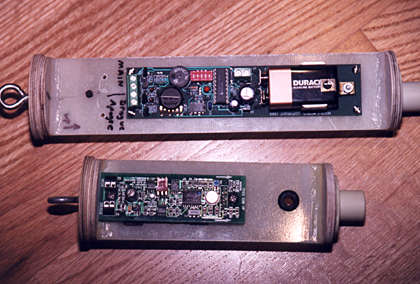

Altimeters The altimeters - Missile Works RRC2 (top) and blacksky AltAcc (bottom) mounted to the boards that will slip into the bays.

Complete rocket picture

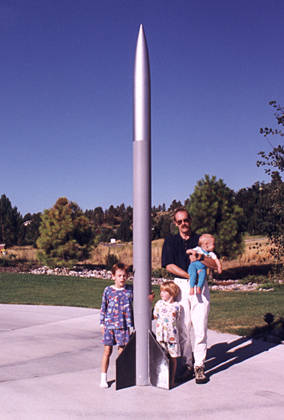

The complete rocket put together for the first time. Rocket

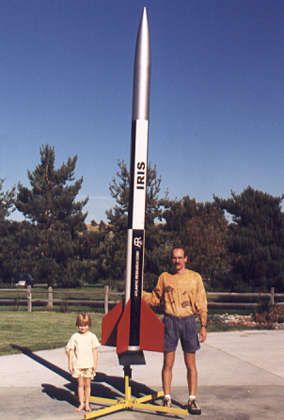

Iris The finished rocket after painting.
